How to choose a right HF Tube Mill line?

FAQ:

1, What is your required tube/pipe OD range? Wall Thickness range? Any other profiles?

We will do the necessary calculations and put out the idea about how to save the HF Tube Mill roll mould cost

2, What is your pipe used for? Can you share some applications?

With our rich experience and professional background, will share with you our successful projects in history.

3, Do you have any plan to visit our factory?

We will take you to visit the running HF HF Tube Mill line in China, to know more about us.

Why us?

1, More than 20 years R&D and manufacture experience. Tube Making industry, 100% performance guarantee.

2, China's leading ERW HF Tube Mill line manufacturer, In-depth knowledges of the latest tube&pipe making technologies.

3, Over 200 HF Tube Mills sold every year on the market. Good quality and reputation is the most important.

How we make the HF Tube Mill line in our factory?

What is the function about the HF HF Tube Mill line?

HF Tube Mill produce pipe and tube by taking a continuous strip of material from Uncoiler, accumulator/storage cage, and continuously roll forming, from breakdown roll stand/stations to fin-pass roll tooling stand/stations until the edges of the strip meet together at a welding station with SQ roller pushing/extrusion force. At this point the HF welding process melts and fuses the edges of the tube together and the material exits the weld station as the welded tube. Basic components include an uncoiler, straightener, Shearing butt & welding, forming section, fin pass section, welder, ID and/or OD scarfing, sizing section, cut off and stacker or runout table.

Each pass in the various sections are made up of a upper and lower shaft that installed with HF Tube Mill roll tooling mould which forms the steel strip gradually into a round shape or square if it is a form square / weld square type of mill. This gradual shape forming process is commonly according to the flower arrangement.

Roll design is a key element of the process and our engineers will work closely with customers to ensure that the end product meets specification and good quality.

Carbide rolls or inserts are also available where high volume production is required.

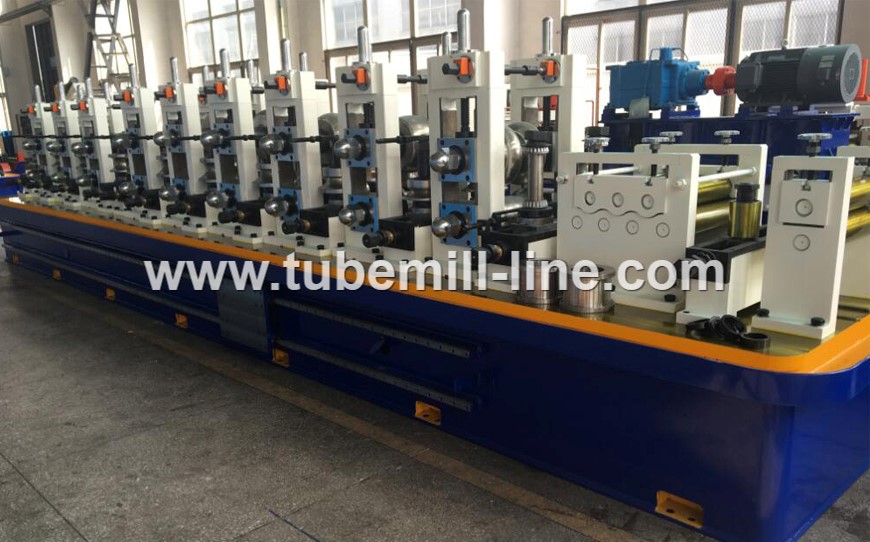

HG165 HF Tube Mill for straight seam welded pipes(Φ76-Φ165mm)

Brief specifications

Pictures for your reference

HF Tube Mill Uncoiler	tube mill Uncoiler(optional)	Flattening with 5 roll leveling	Leveling unit(For Heavy duty)
Accumulator	Hydraulic shear & welding	SQ welding part	HF Tube Mill sizing
TH Straightening stations	tube mill Hot saw(hydraulic)	tube mill Hot saw(pneumatic)	tube mill Cold cutting
Run out table	Operation table	Water-Water Cooling Device	Rectifier cabinet
Inverter output cabinet	DC speed controller	Transformer	HF Tube Mill Roll Tooling

Any more HF Tube Mill line models?

Customized specifications are avaliable, inquiry us for your tube mill line, today !
