We manufacturer the tube and pipe mills and roll set for the tube, pipe, and roll forming industries.

With strong technical support from our team,

We design the pipe mill roll for your tube mill line.

What is the pipe mill roll?

The tube mill rolls/roller/tooling's job is to take a continuously coiled flat strip, form it so that the two edges come together, hold the edges in place while they are welded by HF technology, and then size and straighten the finished tubular product to the required specifications, such as rectangle, square, Z, T, L sections and other profiles. With some tube mills running at 120m/min, the tube mill tooling must be able to perform consistently.

Tube Mill Production Line:

1, Forming Part: Breakdown Roll Tooling, Finpass Roll Tooling(SG)

2, SQ Roll Tooling. (Several Types, depends on your SQ stand/device/cassette)

3, Sizing Roll Tooling + TH Roller Tools

How we design the pipe mill roll?

The flower arrangement is very important for tube mill Roll Tooling Mould Die.

Tube Mill tooling is very important for the tube mill production.

Well, Optimized designed flower for pipe mill roll is the most important for your quality tubes.

With 20 years successful experience in the tube mill line field

China top professional team will service you

It is the best choice, best tube mill running performance guarantee.

The full components of the tube mill line?

Tube Mill Line	Rolls/tooling/mould/roller	pipe mill roll name	Raw Material (Fogged Mould Steel)
Tube Mill Forming Part		Breakdown rolls	D3 China:   GB-Cr12 American:ASTM-D3 Japan:   SKD1 Russia:  GOST-X12 German: DIN-1.2080              (X210Cr12) British: BS-BD3 Hardness:HRC 60±2	D2 China:   GB-Cr12Mo1V1 American:ASTM-D2 Japan:   SKD11 Russia:  GOST-X12M German: DIN-1.2379    (X155CrMoV12-1) British: BS-BD2A Hardness:HRC 60±2
		Cluster Rolls
		Finpass Rolls (Seam Guide)
Tube Mill HF Welding		SQ roller  (2 rolls) Also, we have 2 rolls SQ type, 3 rolls SQ type, 4 rolls SQ type, 5 rolls SQ type.	H13      China:   4Cr5MoVSi American:H13 Japan:   SKD61 Russia:  GOST-4X5MΦ1C German: DIN-1.2344        (X40CrMoV5-1) British: BS-BH13 Hardness:HRC 50±2	H13      China:   4Cr5MoVSi American:H13 Japan:   SKD61 Russia:  GOST-4X5MΦ1C German: DIN-1.2344        (X40CrMoV5-1) British: BS-BH13 Hardness:HRC 50±2
Tube Mill Sizing		IR tooling roll	D3      China:   GB-Cr12 American:ASTM-D3 Japan:   SKD1 Russia:  GOST-X12 German: DIN-1.2080              (X210Cr12) British: BS-BD3 Hardness:HRC 60±2	D2      China:   GB-Cr12Mo1V1 American:ASTM-D2 Japan:   SKD11 Russia:  GOST-X12M German: DIN-1.2379    (X155CrMoV12-1) British: BS-BD2A Hardness:HRC 60±2
		Sizing Rollers
		TH roller

Some of our pipe mill roll projects?

With professional experience to make the pipe mill roll

Adopt the advanced technical process to ensure the pipe mill roll production quality

Designed the pipe mill roll for round pipes, with different thickness and raw materials.

Also, we can help customer to make many profiles according to your detailed requirements and different applications

If any problem about your pipe mill roll setting/debugging, during your steel pipe making process,

please feel free to contact us for a professional consultant.

We will provide you some professional technical tips/advise/suggestion to guide or help you to the success easily.

We provide free technical discuss and consultant?

FAQ. If the tube mill was not from us, how to make pipe mill roll for your tube mill?

1, Do you have the roller drawing from your original supplier, we can quote you accordingly.

2, If don't have the pipe mill roll drawing,

    We will send you a quesitionair to your technical team for filling in the necessary information.

    We can design according to that tube mill design data.

    Click here, download the quesitionair

quesitionair-tube-mill-roller.pdf

3, If you want to make the big pipe diameter with small thickness raw material, such as 90x0.4mm pipe.

   If you want to make the small pipe diameter with big thickness raw material, such as 38x6mm pipe.

   If you want to make the high strength steel raw material pipe, used for auto industry, such as strength 900Mpa.

   Please, do not hesitate to contact us for the best sulotion.

How we make the pipe mill roll?

Honest and qualified raw material, Vacuum heat treatment process, Hi-precision machinine job;

Packing the pipe mill roll with export standard plywoodbox, ready for delivery

F1T/B tube mill roll set	F1T/B tube mill roll set	Sizing tube mill roll set	sizing tube mill rolll set
pipe mill roll manufacturing	pipe mill roll manufacture	Roll vacuum heat treatment	Finished pipe mill roll
Sizing pipe mill roll	TH pipe mill roll	horizontal roll stand	SQ roll stands

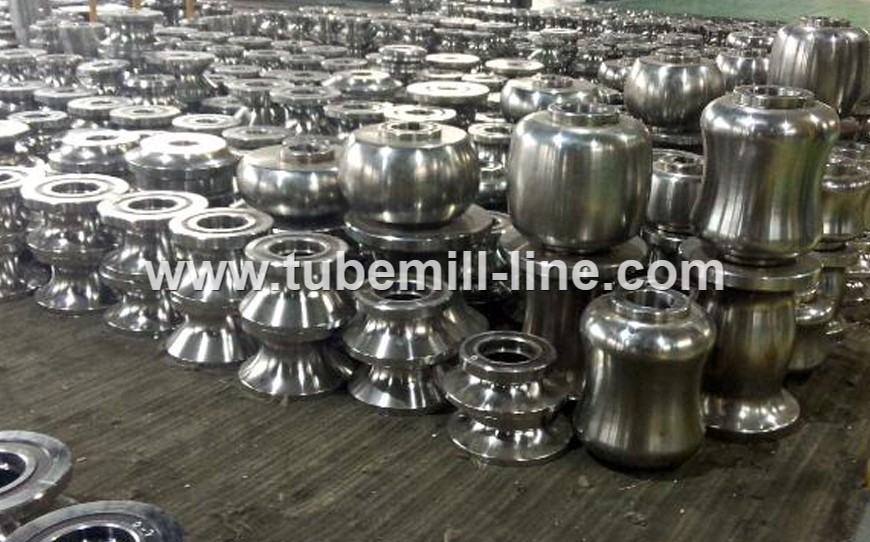

carbide pipe mill roll	carbide pipe mill roll	pipe mill roll ready	roll tool sets ready for deliver
high requirement roll packing	export standard roll packing	roll tooling loading container	roll tools loading container

Contact us today about your pipe mill roll project !
