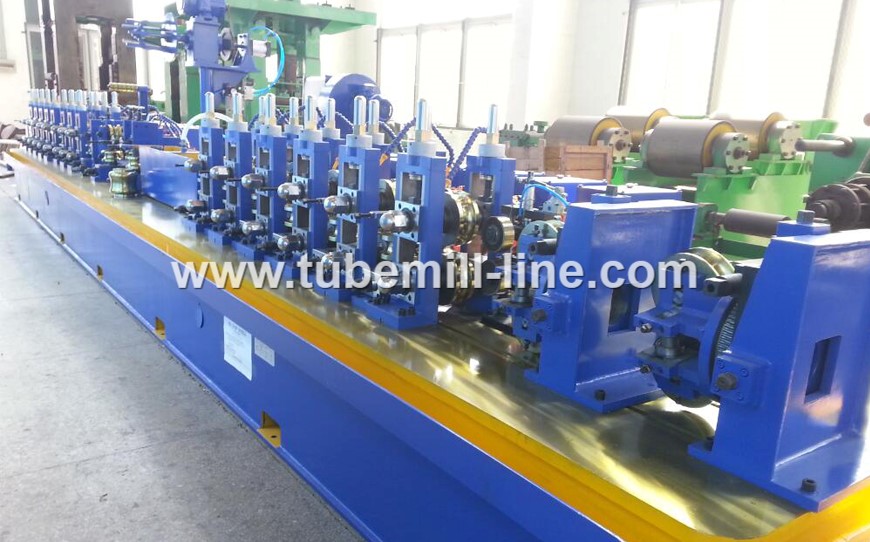

HG32 Tube Mill Line for making carbon steel tube(Φ12.7-Φ38.1mm)


How to choose a right tubing mills line?

FAQ:

1, What is your required tube/pipe OD range? Wall Thickness range? Any other profiles?

We will do the necessary calculations and put out the idea about how to save the tubing mills roll mould cost

2, What is your pipe used for? Can you share some applications?

With our rich experience and professional background, will share with you our successful projects in history.

3, Do you have any plan to visit our factory?

We will take you to visit the running tubing mills machine line in China, to know more about us.


Why us?

1, More than 20 years R&D and manufacture experience. Tube Making industry, 100% performance guarantee.

2, China's leading ERW tubing mills machine line manufacturer, In-depth knowledges of the latest tube&pipe making technologies.

3, Over 200 tubing mills machines sold every year on the market. Good quality and reputation is the most important.



How we make the tubing mills machine line in our factory?


workshop for erw tube mill.jpgworkshop for hf tube mill line.jpgCNC flame cutting for tube mill.jpgassembly job for tube mill.jpg
welding the bed for tube mill.jpgmachining the bed for tubing mills.jpgcnc job for erw tube mill.jpgcnc machine center for hf tube mill.jpg
assembly job for hf tube mill.jpgmachining job for pipe mill.jpgCNC center.jpgsteel tube mill cnc machining.jpg
electrical workshop for tube mill.jpgquality electrical components for tube mill.jpgCNC center for making the piping mill line.jpgmany sets of cnc center machine.jpg
electrical carbinets for pipe mills.jpgfinished tube mill line for delivery.jpgfinished tubing mills for deliver.jpgHF tube mill ready for loading container.jpg




What is the function about the tubing mills machine line?

tubing mills produce pipe and tube by taking a continuous strip of material from Uncoiler, accumulator/storage cage, and continuously roll forming, from breakdown roll stand/stations to fin-pass roll tooling stand/stations until the edges of the strip meet together at a welding station with SQ roller pushing/extrusion force. At this point the HF welding process melts and fuses the edges of the tube together and the material exits the weld station as the welded tube. Basic components include an uncoiler, straightener, Shearing butt & welding, forming section, fin pass section, welder, ID and/or OD scarfing, sizing section, cut off and stacker or runout table.

Supply Tube Mill, Tubing Mills, HF Tube Mill, Erw Tube Mill, Tube Mill Roller, Tube Mill Roll Set, Tube Mill Mould, Pipe Mill.jpg

Each pass in the various sections are made up of a upper and lower shaft that installed with tubing mills roll tooling mould which forms the steel strip gradually into a round shape or square if it is a form square / weld square type of mill. This gradual shape forming process is commonly according to the flower arrangement.

Roll design is a key element of the process and our engineers will work closely with customers to ensure that the end product meets specification and good quality.

Carbide rolls or inserts are also available where high volume production is required.

tube mill line roll tooling mould roller design.jpg




HG32 Tubing Mills Line for making carbon steel tube(Φ12.7-Φ38.1mm)

Brief specifications

No

item

numerical value

1

Round pipe   diameter

Φ12.7mm～Φ38.1mm

2

Round tube   thickness

δ0.5mm～1.8mm

3

Square   tube size

10×10～30×30mm

4

Square   tube thickness

δ0.5mm～1.4mm

5

Rectangular   tube size

8×12～20×40mm

6

Rectangular   tube thickness

δ0.5mm～1.4mm

7

Rolling   speed

30M/min～120M/min

8

Length of   tube

4M～8M

Different size and thickness,tubing mills speed is different,

Not all size can reach 120M/min

Pictures for your reference

tubing mills uncoiler.jpgButt Shearing & Welding.jpgtubing mills storage Cage/Accumulator.jpgtubing mills Forming Stations.jpg
tubing mills UncoilerButt Shearing & WeldingStorage Cage/Accumulatortubing mills Forming Stations
SQ Welding Section.jpgtubing mills Sizing Stations.jpgtubing mills Hot saw.jpgtubing mills Cold cutting saw.jpg
SQ Welding Sectiontubing mills Sizing Stationstubing mills Hot sawtubing mills Cold cutting saw
tube mill run out table.jpgtube mill operation table.jpgWater-Water Cooling Device.jpghigh frequency rectifier cabinet.jpg
Run out tableOperation tableWater-Water Cooling DeviceRectifier cabinet
tube mill HF Inverter output cabinet.jpgtube mill DC speed controller.jpgHF transformer.jpgtube mill roll tooling.jpg
Inverter output cabinetDC speed controllerTransformertubing mills Roll Tooling



Any more tubing mills line models?

China high quality tube mill line manufacturer.jpg

ModelTube OD (mm)Wall Thickness (mm)tubing mills SpeedMain Motor PowerHF Power
HG 16Ø8 ~ Ø25δ0.25  ~ δ1.030~120 m/min37 KW100 KW
HG 25Ø8 ~ Ø32δ0.35  ~ δ1.330~120 m/min45 KW100 KW
HG 32Ø12.7 ~ Ø38.1δ0.5  ~ δ1.830~120 m/min90 KW150 KW
HG 45Ø12.7 ~ Ø50.8δ0.6  ~ δ2.330~120 m/min132 KW150 KW
HG 50Ø19 ~ Ø63.5δ0.6  ~ δ2.730~100 m/min160 KW200 KW
HG 50-76Ø19 ~ Ø76δ0.6  ~ δ2.730~100 m/min160 KW200 KW
HG 50-95Ø25 ~ Ø95δ0.7  ~ δ2.530~90 m/min185 KW200 KW
HG 60Ø19 ~ Ø76δ0.8  ~ δ3.530~90 m/min200 KW250 KW
HG 60-102Ø25 ~ Ø102δ0.8  ~ δ3.030~80 m/min200 KW250 KW
HG 76Ø25 ~ Ø95δ1.0  ~ δ4.030~70 m/min200 KW300 KW
HG 76-127Ø38 ~ Ø127δ1.2  ~ δ4.030~70 m/min110 KW x 2300 KW
HG 89Ø38 ~ Ø102δ1.2  ~ δ4.520~60 m/min132 KW x 2400 KW
HG 89-127Ø38 ~ Ø127δ1.2  ~ δ4.520~60 m/min132 KW x 2400 KW
HG 89-140Ø50.8 ~ Ø140δ1.2  ~ δ4.520~60 m/min132 KW x 2400 KW
HG 114Ø50.8 ~ Ø127δ1.5  ~ δ5.020~60 m/min160 KW x 2400 KW
HG 114-165Ø76 ~ Ø165δ2.0  ~ δ5.020~60 m/min185 KW x 2400 KW
HG 165Ø76 ~ Ø165δ2.0  ~ δ6.015~50 m/min185 KW x 2500 KW
HG 219Ø89 ~ Ø219δ2.5  ~ δ8.015~50 m/min200 KW x 2500 KW


Customized specifications are avaliable, inquiry us for your tube mill line, today !
